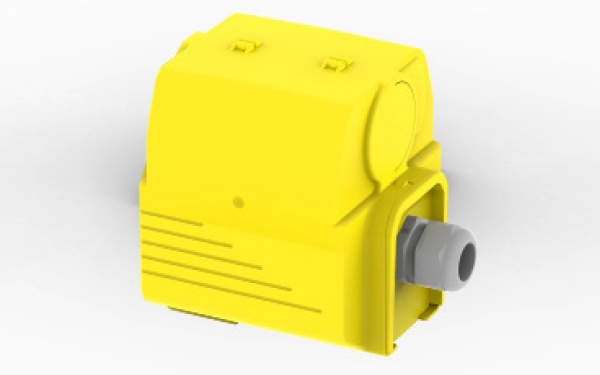

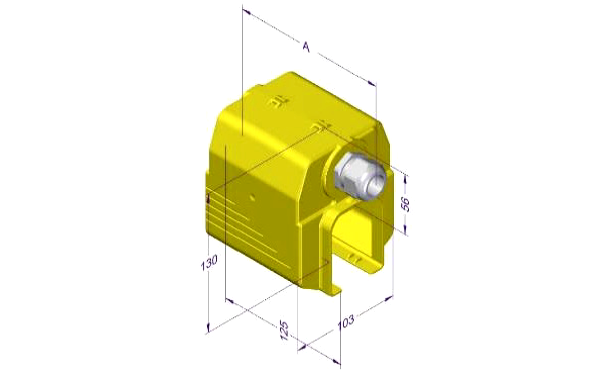

End-line feed box
Interface accessory for the electrical connection at the end of the line.
Selection of key components
According to the information you have provided, the INNO by Mobilis electrification line should include at least the components displayed and activated. Fill them in in numerical order.
End-line feed box
Interface accessory for the electrical connection at the end of the line.
Interface accessory for the electrical connection at the end of the line.
Part numbers and compatibility
Tips
How to minimize voltage drops? Read our tip sheet.
Ordering information
- Choose between the two versions and between the two cable gland threads.
- The feed box is delivered with 4 feeding connections and pole marking label.
- Terminals not provided.
- For use with aluminum cables, provide bi-metallic cable terminals aluminum-copper and cables of minimum section of 16mm² in accordance with Standard NF EN 60204-32 §13.2.
- The version with cable gland on the shell (AR) can be repositioned in the course of the line, in the place of a covering flange.
References
| Quantity | ||
|---|---|---|
|

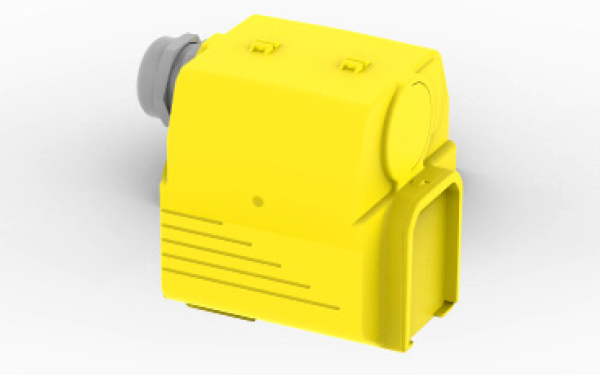

AV model - Power supply with M25 cable gland |
MI1200 |
|
|
AV model - Power supply with M32 cable gland |
MI1230 |
|
|

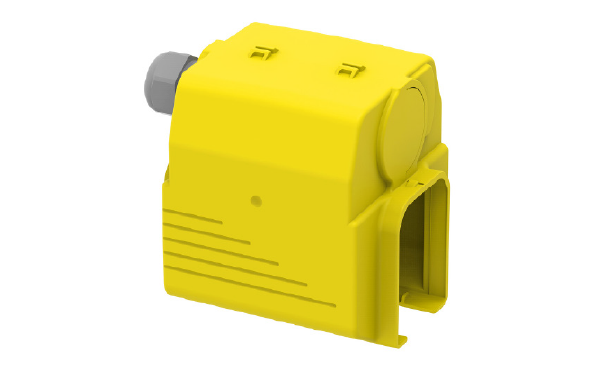

AR model - Power supply with M25 cable gland |
MI1201 |
|
|
AR model - Power supply with M32 cable gland |
MI1231 |
|

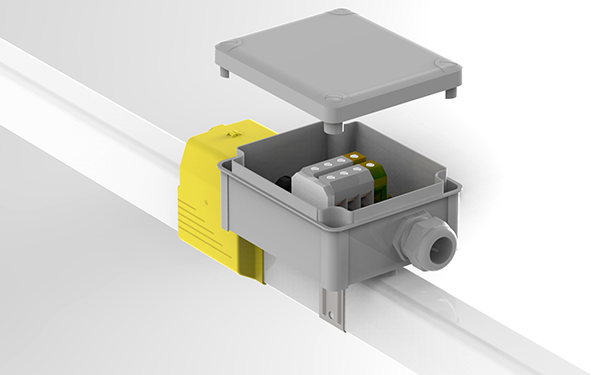

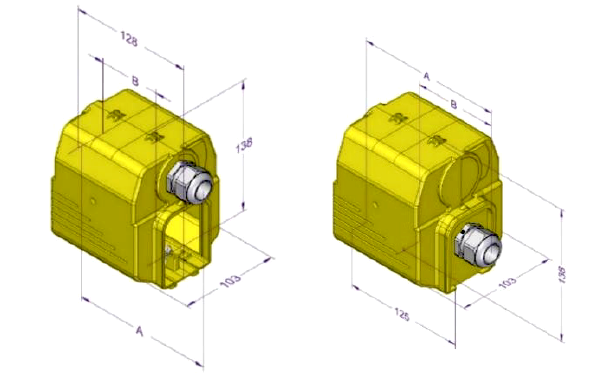

M25-M32 in-line feed box
Interface accessory for the electrical connection of the line on a connection in-line.
M25-M32 in-line feed box
Interface accessory for the electrical connection of the line on a connection in-line.
Interface accessory for the electrical connection of the line on a connection in-line.
Part numbers and compatibility
Tips

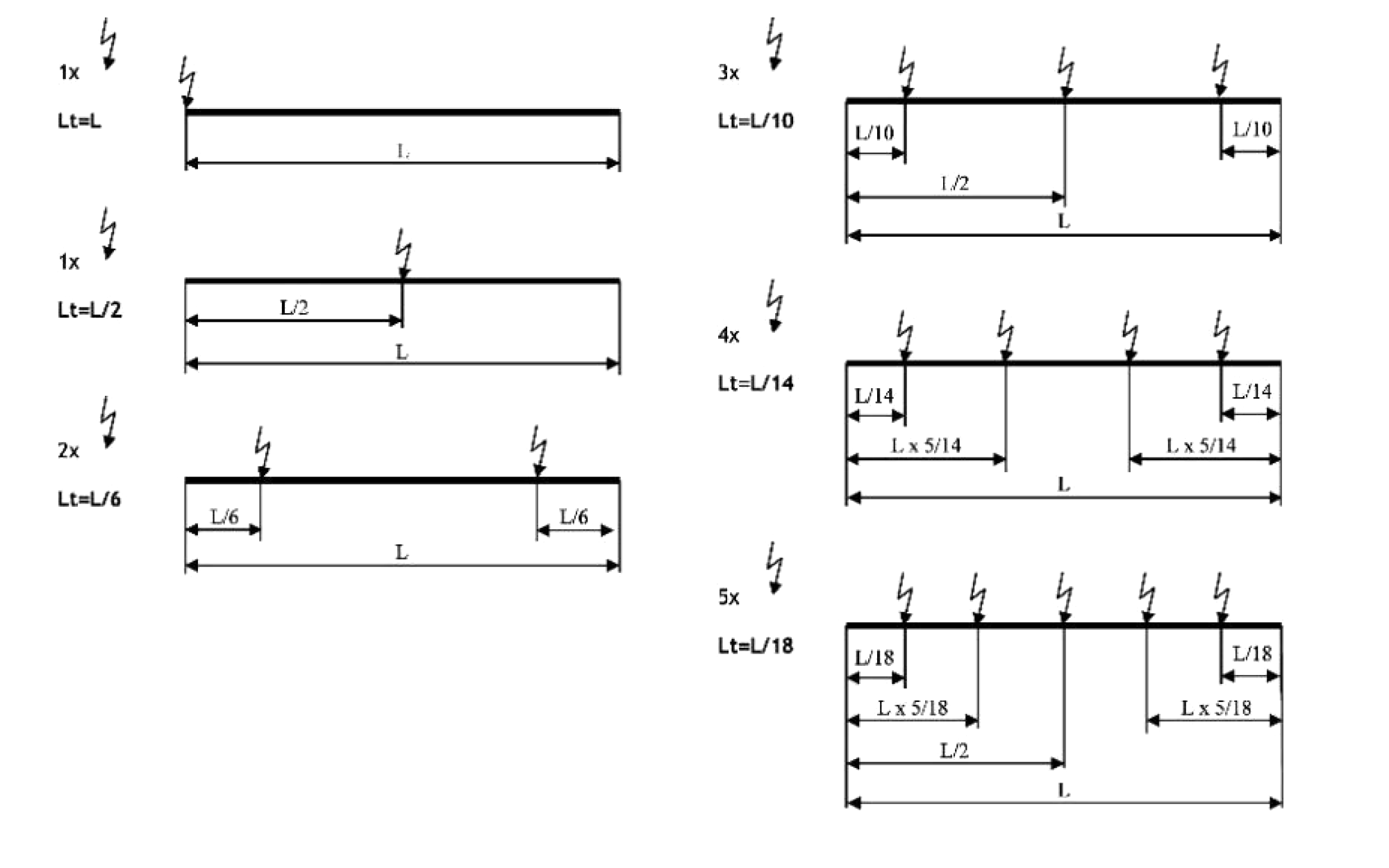

How to minimize voltage drops? Read our tip sheet.
Ordering information
- Select the suitable cable gland thread.
- Delivered with 4 feeding connections MI1010 and pole marking label.
- Terminals not provided.
- For use with aluminum cables, provide bi-metallic cable terminals and cables of minimum section 16mm² in accordance with Standard NF EN 60204-32 §13.2.
- The feed box can be repositioned at the end of the line.
References
| Quantity | ||
|---|---|---|
|
Line feed with M25 cable gland |
MI1300 |
|
|
Line feed with M32 cable gland |
MI1330 |
|

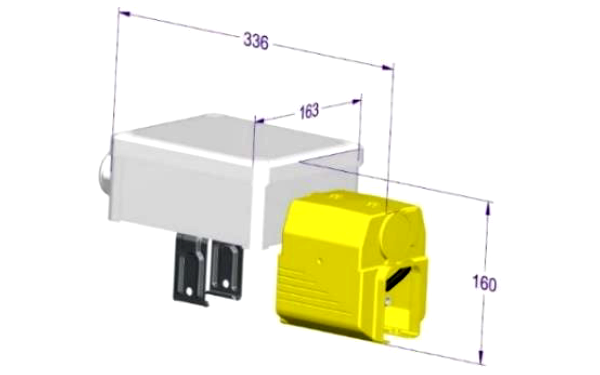

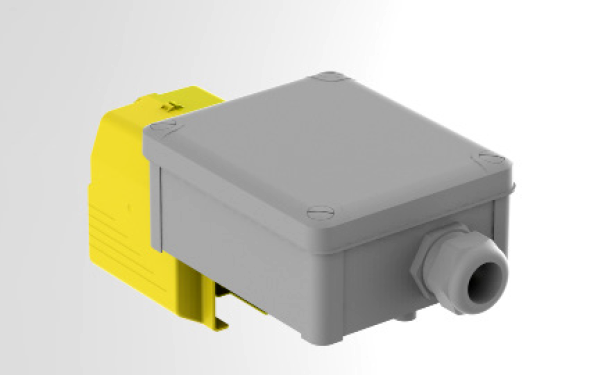

M40 in-line feed box
Interface accessory for the electrical connection on a junction in-line.
M40 in-line feed box
Interface accessory for the electrical connection on a junction in-line.
Interface accessory for the electrical connection on a junction in-line.
Part numbers and compatibility
Tips
How to minimize voltage drops? Read our tip sheet.
Ordering information
- Delivered with 4 feeding connections MI1010 and pole marking label.
- If rigid cables are used, ask for the specific application data sheet.
- For use with aluminum cables, provide bi-metallic cable terminals and cables of minimum section 16mm² in accordance with Standard NF EN 60204-32 §13.2.
- The feed box can be repositioned at the end of the line.
References
| Quantity | ||
|---|---|---|
|
Line feed with M40 cable gland |
MI1332 |
|
Which feed box to choose to reduce the voltage drop?
Which feed box to choose to reduce the voltage drop?
