Selection of key components

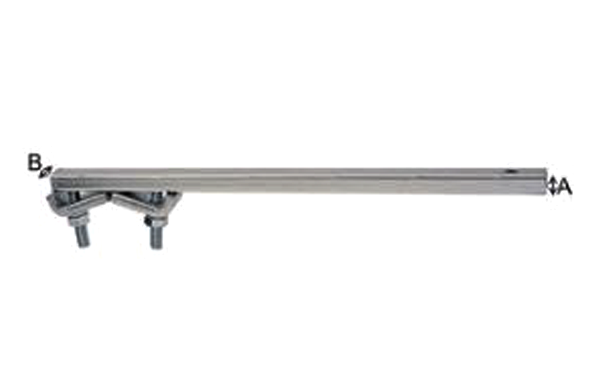

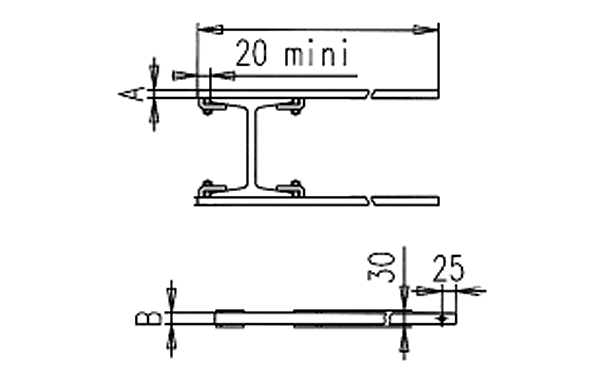

Standard bracket

Ensures the mechanical link between the structure of the frame and the sliding hangers, fixes the position of the line in relation with the running rail.

Ensures the mechanical link between the structure of the frame and the sliding hangers, fixes the position of the line in relation with the running rail.

Part numbers and compatibility

Ordering information

Select the number of brackets according to the rules for placing sliding hangers.

References

		Quantity
Standard support L 380 mm beam 6…20 mm	ME1700
Standard support L 500 mm beam 6…20 mm	ME1750
Standard support L 600 mm beam 6…20 mm	ME1760
Standard support L 600 mm beam 15…32 mm	ME1765
Standard support L 850 mm beam 6…20 mm	ME1780
Standard support L 850 mm beam 15…32 mm	ME1785

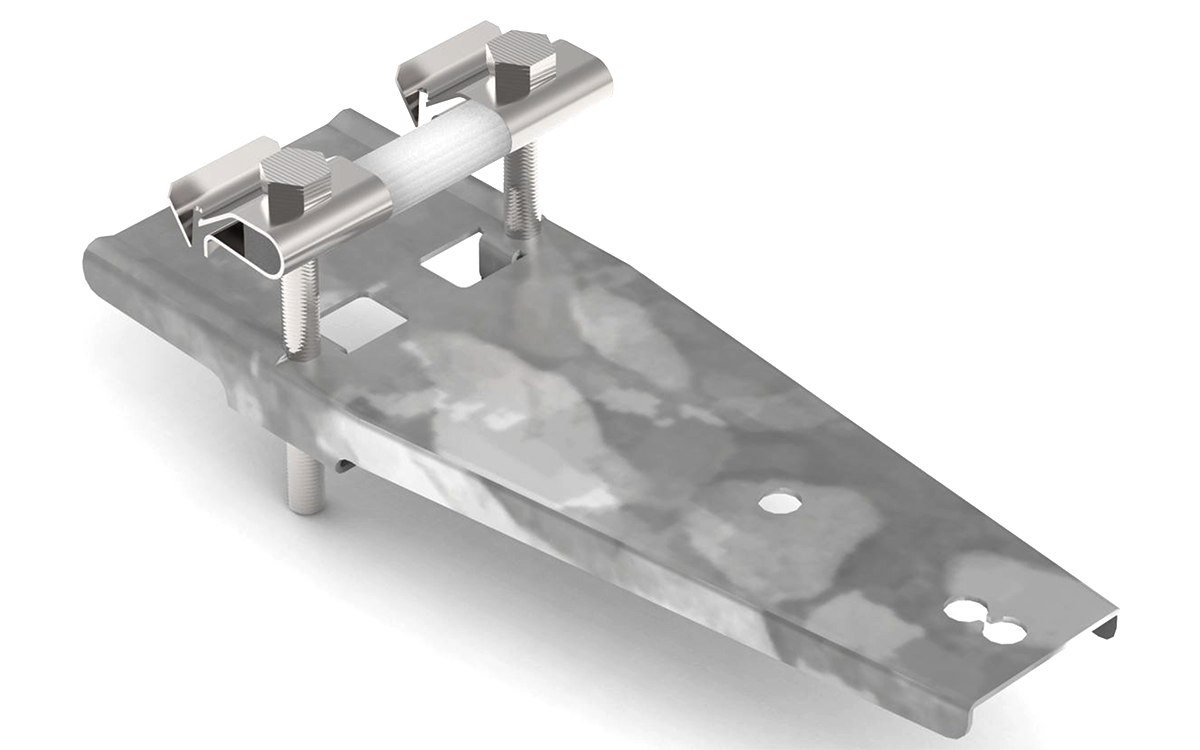

Fast assembling clamped bracket

Ensures the mechanical link between the structure of the frame and the sliding hangers, fixes the position of the line in relation with the running rail.

Ensures the mechanical link between the structure of the frame and the sliding hangers, fixes the position of the line in relation with the running rail.

Part numbers and compatibility

Ordering information

Select the number of brackets according to the rules for placing sliding hangers.

References

		Quantity
Quick-mounting support L 240 mm	ME1799

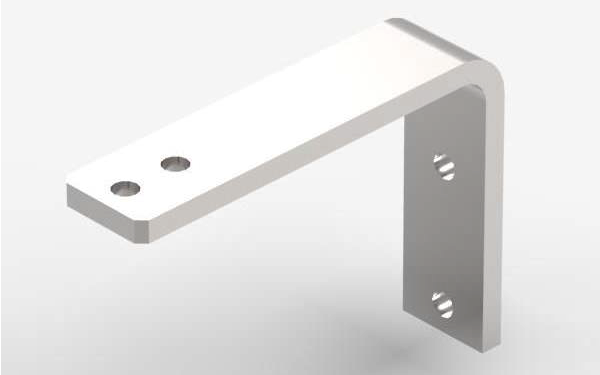

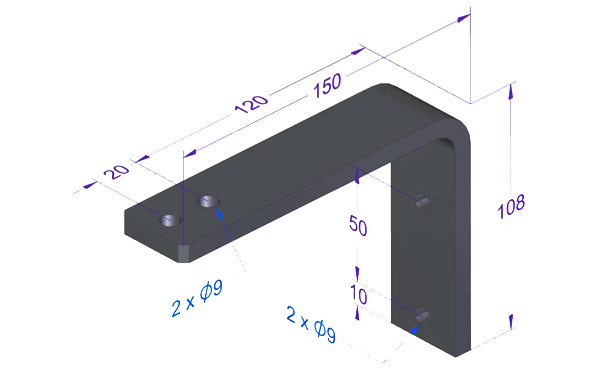

Bracket for concrete or wooden beam

Ensures the mechanical connection between the concrete or wooden structure of the frame and the hangers

Ensures the mechanical connection between the concrete or wooden structure of the frame and the hangers

Part numbers and compatibility

Ordering information

• Select the number of brackets according to the rules for placing sliding hangers.
• Provide 2 dowels per bracket
• M8 dowels: minimum order quantity 50 pieces

References

		Quantity

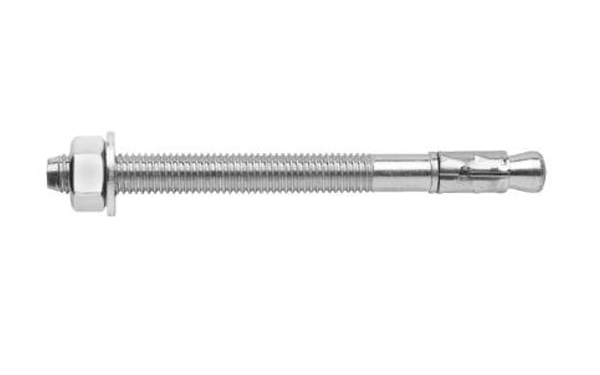

Support for glulam beam or concrete	ME1792

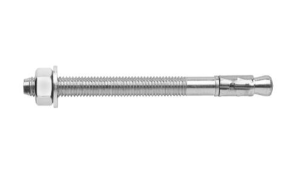

Concrete studs M8X90 (min. 50 pcs)	ME0422

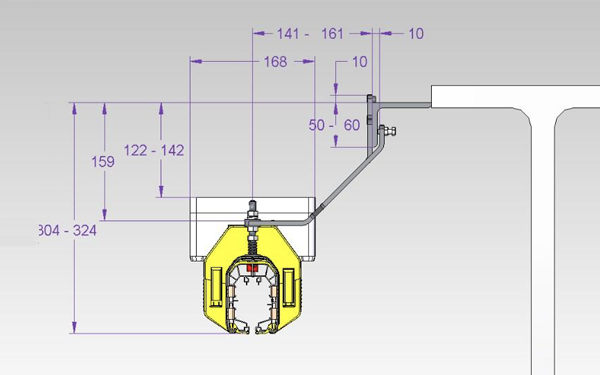

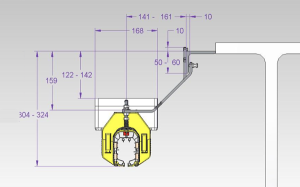

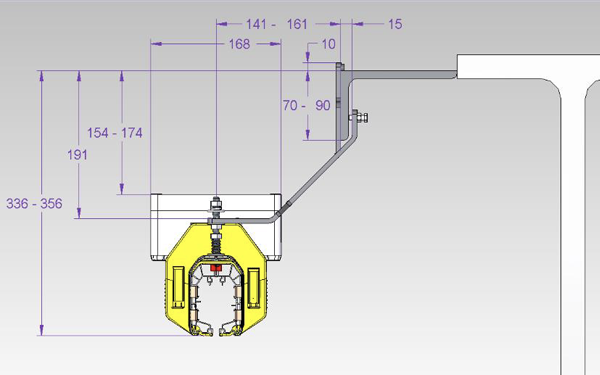

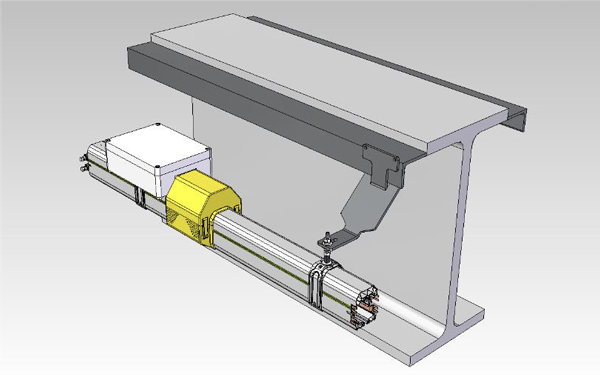

Bracket for beam with angle

Ensures the mechanical link between the structure of the frame and the sliding hangers, fixes the position of the line in relation with the running rail

Ensures the mechanical link between the structure of the frame and the sliding hangers, fixes the position of the line in relation with the running rail

Part numbers and compatibility

Compatibility

Compatible with sliding and fixed hangers

Ordering information

• Select the number of brackets according to the rules for placing sliding hangers.

• Available in two versions for 50 to 90mm wing height angles

References

		Quantity
Support for rail with 50-60 mm angle bracket	ME1797
Support for rail with 70-90 mm angle bracket	ME1798
